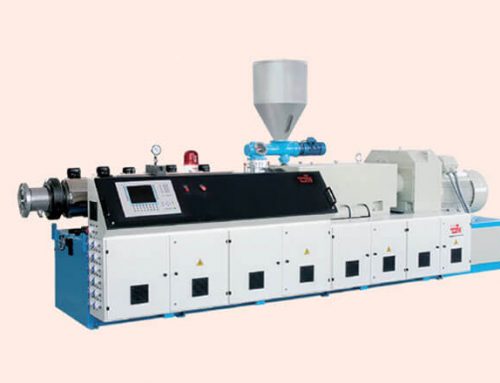

Twin Parallel Different Direction Double Screws Extruder

Characteristics of the equipment

Model SJP serials twin parallel screw extruder is a kind of special equipment for extruding of PVC powder. With different sorts of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe material, profiled material, board material, sheet material, bar material and granulation.

The screw has applied oil system. Barrel is cooled by special wind cooling system. The control system has applied computer control. According to customer’s requirements, most reasonable screw can be made so as to achieve best plasticity state and material quality. The screw is made by high precision special digital screw miller, extruding property can be highly harmonized. It has firstly introduced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut. The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, temperature control tolerance can be±1℃ .

Use for pipe extrusion

Mode SJP75/28 SJP93/28 SJP114/28 SJP135/28
Motor power(kw) 37 75 110 160
Screw diameter (mm) 75 93 114 135
L/D Ratio 28:1 28:1 28:1 28:1
Max.Output(kg/h) 350 460 680 1100
Weight(kg) 4100 4700 6500 8400

Use for profile extrusion

Mode SJP75/26 SJP93/26 SJP114/26 SJP135/26
Motor power(kw) 22 37 55 90
Screw diameter (mm) 75 93 110 130
L/D Ratio 26:1 26:1 26:1 26:1
Max.Output(kg/h) 220 380 460 680
Weight(kg) 4100 4700 6500 8400

Use for board & sheet extrusion

Mode SJP90/23 SJP105/23 SJP113/23 SJP120/23 SJP130/23
Motor power(kw) 37 55 75 90 132
Screw diameter (mm) 90 105 113 120 130
L/D Ratio 23 23 23 23 23
Max.Output(kg/h) 300 400 500 600 800
Weight(kg) 4500 6000 6500 7000 8000
